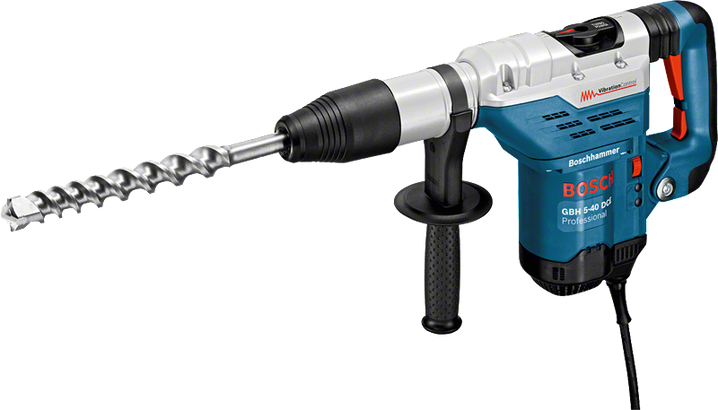

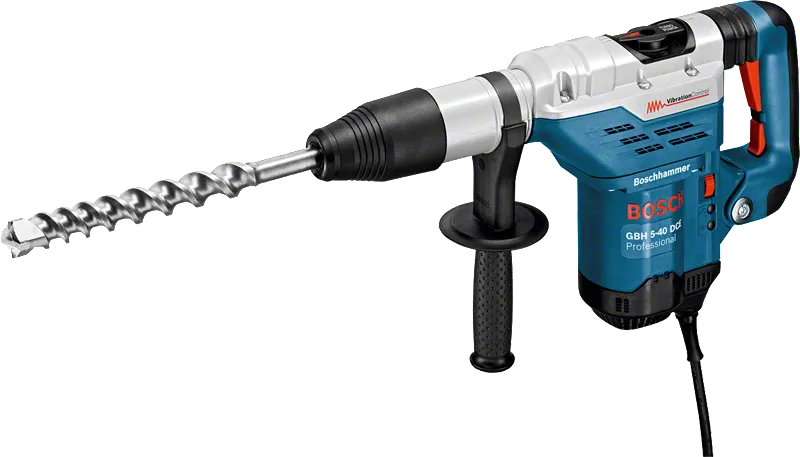

Rotary Hammer with SDS max
GBH 5-40 DCE Professional

£538.06 Including VAT.
in carrying case with auxiliary handle, Accessory

Bosch’s SDS max rotary hammer for comfortable handling in extensive applications

Choose product variation:

in stock

Print

More

Technical data

The most important data

Rated input power 1,150 W
Impact energy 8.8 J
Impact rate at rated speed 1,500 – 3,050 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg

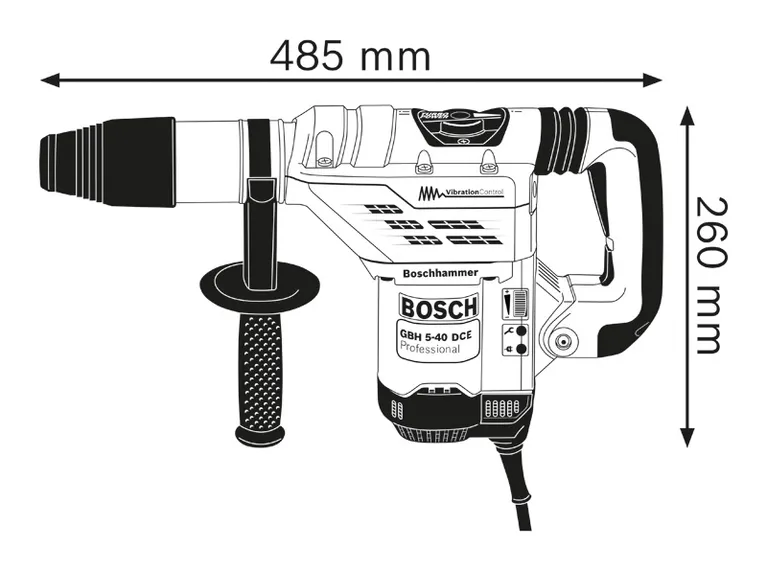

Tool dimensions (length) 485 mm
Tool dimensions (height) 260 mm
Tool holder SDS max
Packaging dimensions (width x length x height) 405 x 610 x 140 mm
Voltage, electrical 110 V
Drilling dia. concrete, hammer drill bits 12 – 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 10.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Bosch’s SDS max rotary hammer for comfortable handling in extensive applications

  • Vibration Control and lightweight design for effortless and continuous work in time-intensive applications
  • Durable due to robust metal components and optimised lubrication system
  • Powerful motor enables the delivery of 8.8 J of impact energy for fast drilling and high removal rate

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Better chiselling performance by utilizing the power used for drilling to increase impact energy when in hammer only mode
Optimal power transmission for large hammers
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Construction The professional power tools for construction from Bosch.
Scope of supply

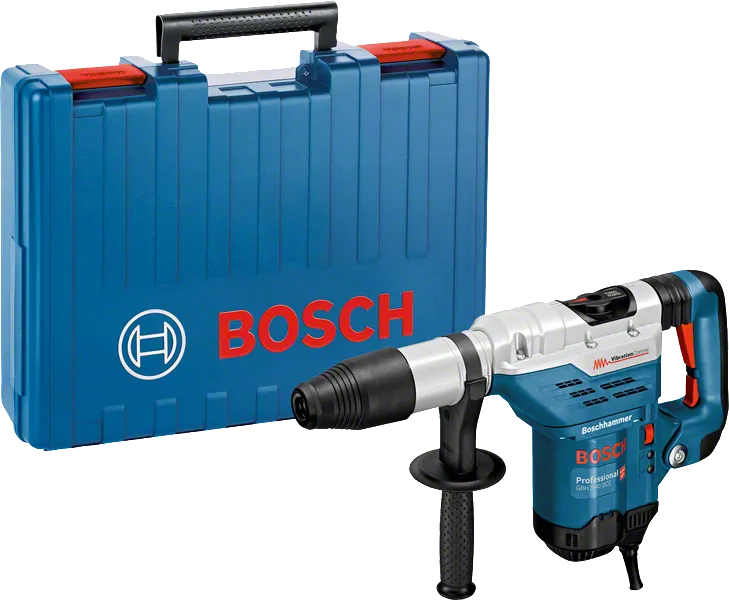

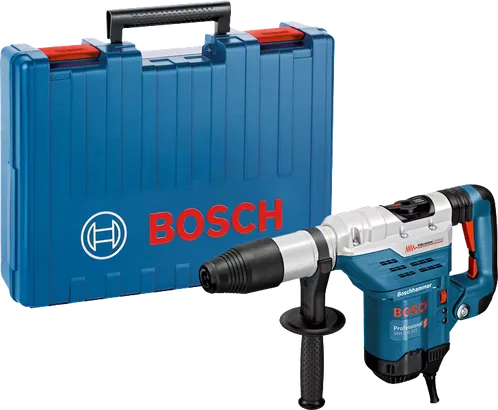

in carrying case with auxiliary handle, Accessory

Part Number: 0611264060

£538.06
Including VAT.

Selected version

Price includes:

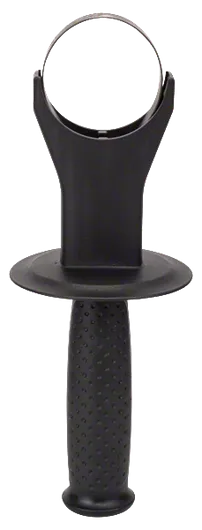

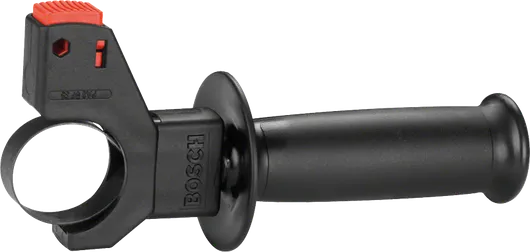

  • Auxiliary handle 2 602 025 117
  • Carrying case (spare part number 1 615 438 460)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V

in stock

in carrying case with auxiliary handle, Accessory

Part Number: 0611264060930

£538.06
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 117
  • Carrying case (spare part number 1 615 438 460)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611264070

£538.06
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 117
  • Carrying case (spare part number 1 615 438 460)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 240 V

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611264070920

£403.20
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 117
  • Carrying case (spare part number 1 615 438 460)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 240 V

Available at Bosch partners
