Rotary hammers with SDS max

GBH 5-40 DCE Professional

Rotary Hammer with SDS max

Bosch’s SDS max rotary hammer for comfortable handling in extensive applications

  • Vibration Control and lightweight design for effortless and continuous work in time-intensive applications
  • Durable due to robust metal components and optimised lubrication system
  • Powerful motor enables the delivery of 8.8 J of impact energy for fast drilling and high removal rate
See technical details

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Better chiselling performance by utilizing the power used for drilling to increase impact energy when in hammer only mode
Optimal power transmission for large hammers

Your Selection

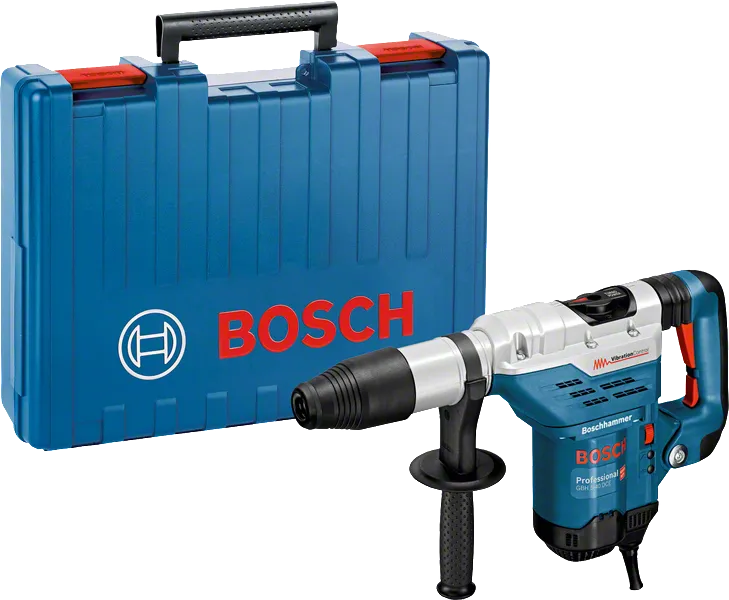

  • in carrying case with auxiliary handle, Accessory
Change variant
£538.06 Including VAT

in stock

Find a local dealer

in carrying case with auxiliary handle, Accessory 0 611 264 070
£538.06 Including VAT

Select a variant

Your Selection

in carrying case with auxiliary handle, Accessory

Part Number: 0 611 264 070

£538.06

Including VAT

in stock

Find a local dealer

Your Selection

in carrying case with auxiliary handle, Accessory

Part Number: 0 611 264 060

£538.06

Including VAT

Available at Bosch partners

Buy from a Bosch partner

Technical data

The most important data

Rated input power 1,150 W
Impact energy 8.8 J
Impact rate at rated speed 1,500 – 3,050 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg

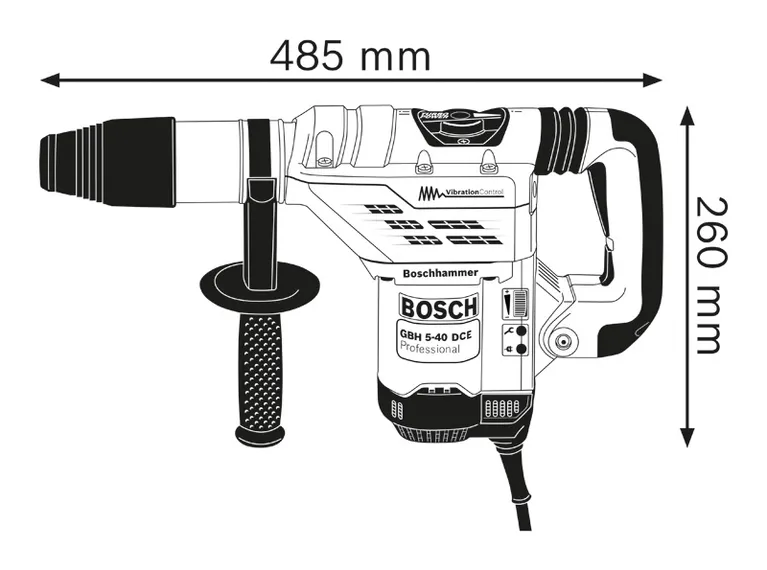

Tool dimensions (length) 485 mm
Tool dimensions (height) 260 mm
Tool holder SDS max
Show more

GBH 5-40 DCE Professional: Further information

Product Highlights

The GBH 5-40 DCE Professional is uniquely designed within Bosch’s SDS max corded rotary hammer category for comfortable handling and reduced user fatigue in extensive applications. Its Vibration Control and lightweight design enable effortless and continuous work in time-intensive tasks. The rotary hammer is also built for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.8 J of impact energy for a fast drilling progress and high material removal rate.

Equipment & Application

This tool is intended for drilling up to 40 mm in diameter and light chiselling work in concrete and stone. It is compatible with various dust attachments.

Additional Information

The GBH 5-40 DCE Professional also features Constant Speed, Rotation Control Clutch, and Speed Selection.

EPTA Procedure 05: Single Impact Energy

European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.

It defines a standardized measurement method, which ensures comparability between different tools and member companies.

The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
