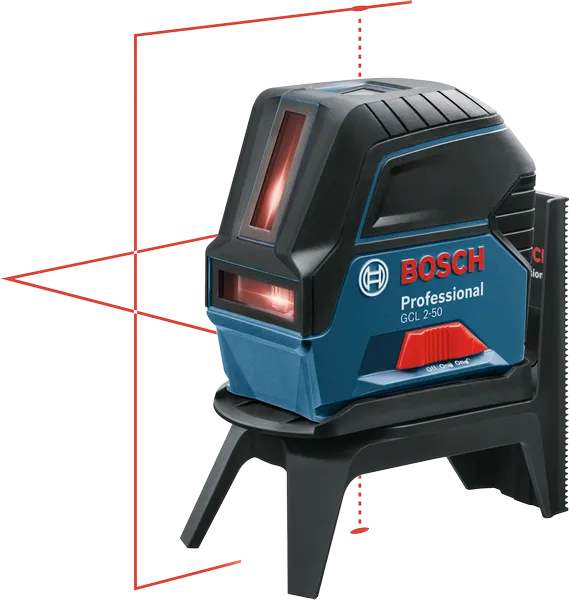

GCL 2-50 Professional
Combi Laser
Compact and versatile for all levelling applications up to 50 metres
- Horizontal and vertical laser lines and two centred plumb points with optimal visibility
- Receiver mode that allows you to work with the Bosch laser receiver LR 6 and LR 7 for a working range up to 50 metres

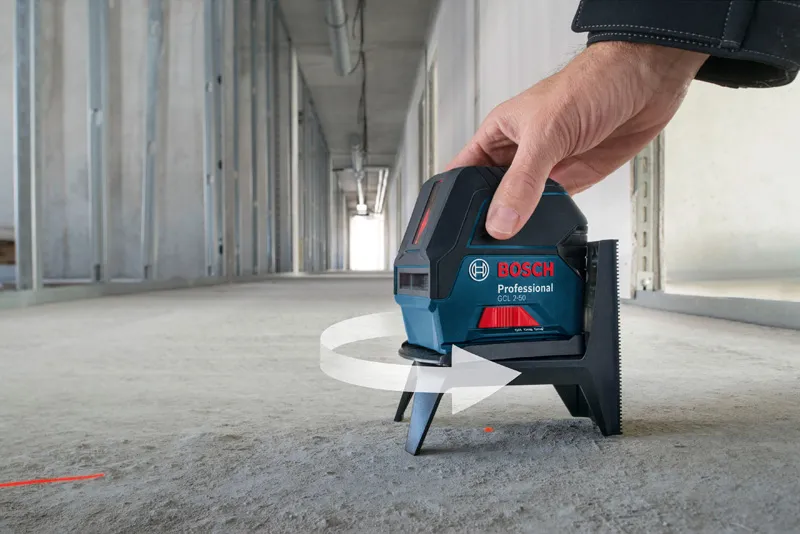

- Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
Functions & key features
Your Selection
- in carrying case with 3 x battery (AA), clamp
247.00 GBP
Including VAT
in stock
in carrying case with 3 x battery (AA), clamp
0 601 066 F01
GCL 2-50 Professional
Your Selection
in carrying case with 3 x battery (AA), clamp
Part Number: 0 601 066 F01
247.00 GBP
Including VAT
in stock

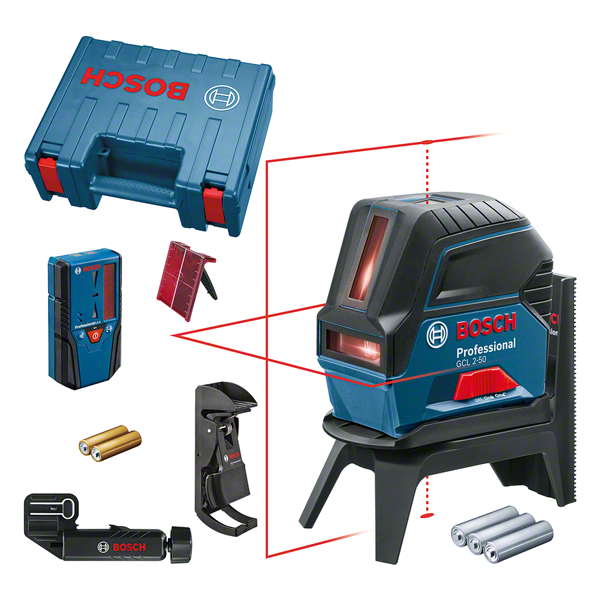

Included in this variant
-
Carrying casePart Number: 1 608 M00 C1R
-
Laser receiver LR 6 ProfessionalPart Number: 0 601 069 H00
-
Rotating mount RM 1 ProfessionalPart Number: 0 601 092 600
-
3 x 1.5 V LR6 battery (AA)
-
Bracket for laser receiver LR 6/7Part Number: 1 608 M00 C1L
-
Ceiling clamp
-
Laser target plate
Technical data
The most important data |
|
|---|---|
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | 15 m |
| Working range with receiver* | 50 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max.* | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 3 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx.** | 0.49 kg |
| Colour of laser line | red |
| Color of plumb points | red |
| Projection | 2 lines / 2 points |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Compatible laser receivers | LR 6 + 7 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
