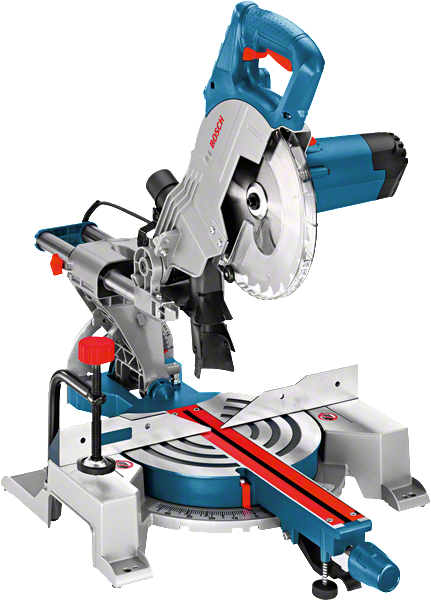

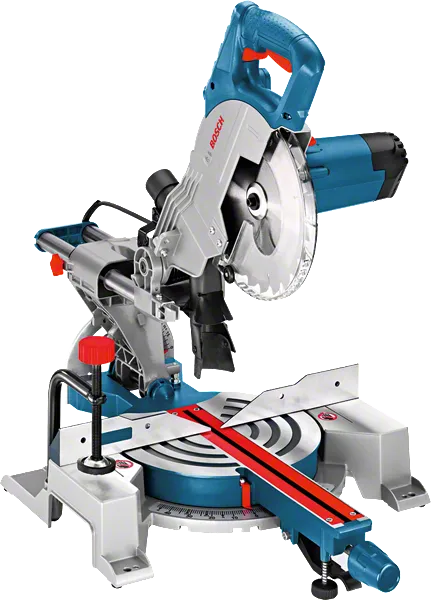

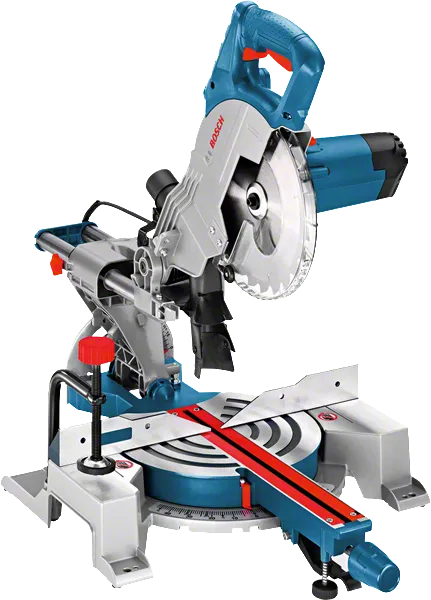

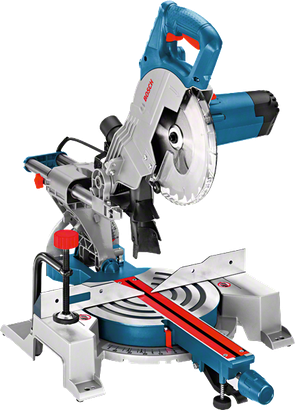

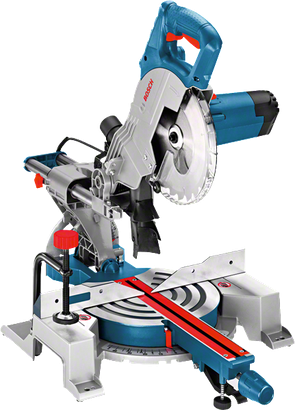

GCM 800 SJ Professional
Sliding Mitre Saw
Compact and lightweight mitre saw, perfect for basic operation
- Reliable performance with a 270 mm horizontal cutting capacity for basic jobs
- Light and compact for mobility and convenient transportation
- Easy and intuitive operation thanks to straightforward design
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 B19 060
Included in all variants
-
1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24Part Number: 2 608 640 431
-
Hex key
Additional in this variant
-
Voltage 110 V
Your Selection
Part Number: 0 601 B19 070
Including VAT
in stock
Included in all variants
-
1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24Part Number: 2 608 640 431
-
Hex key
Additional in this variant
-
Voltage 240 V
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 70 x 270 mm |
| Cutting capacity, 45° mitre | 70 x 190 mm |
| Cutting capacity, 45° bevel | 48 x 270 mm |
| Mitre setting | 47 ° L / 47 ° R |
| Bevel setting | 45 ° L / 0 ° R |

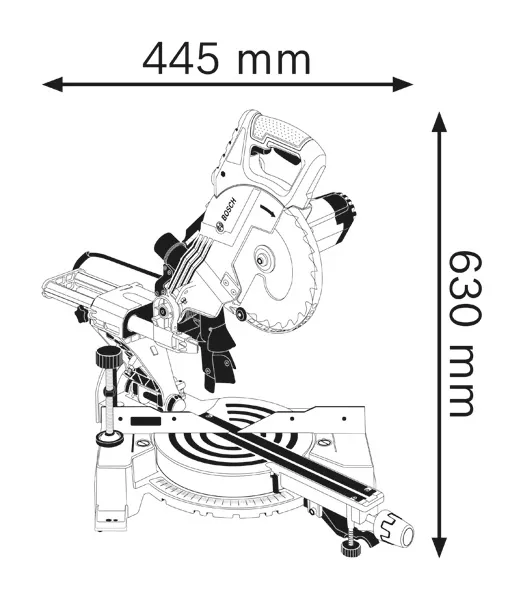

| Tool dimensions (width x length x height) | 460 x780 x630 mm |
| No-load speed* | 5,500 rpm |
| Saw blade diameter | 216 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 13.5 kg |
| Rated input power | 1,250 W |
| Packaging dimensions (width x length x height) | 474 x 810 x 435 mm |
| Voltage | 110 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 800 SJ Professional: Further information
Product Highlights
This lightweight and compact mitre saw is a reliable performer that is ready for any popular application, anywhere. It features a 270 mm horizontal cutting capacity for good results in basic jobs. It´s clear. Light, and compact design offers mobility and ensures convenient transportation as well as intuitive operation.
Equipment & Application
This mitre saw is intended for cross, mitre, bevel, and groove cuts in wood, timber beams, and wood composites as well as board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The product also includes features such as soft start.
