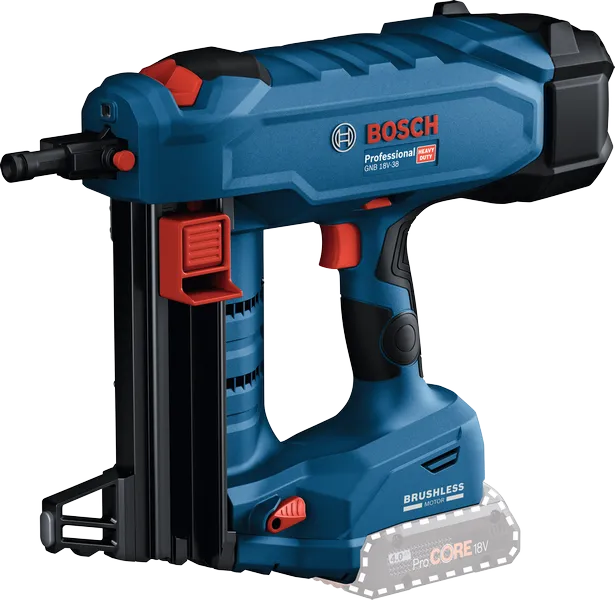

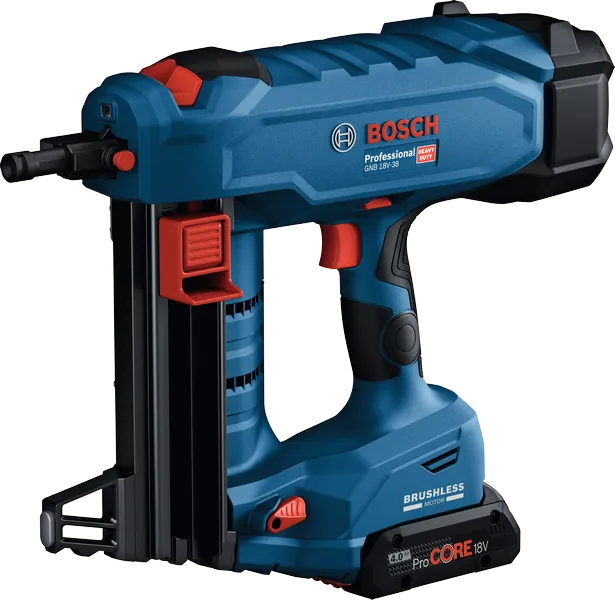

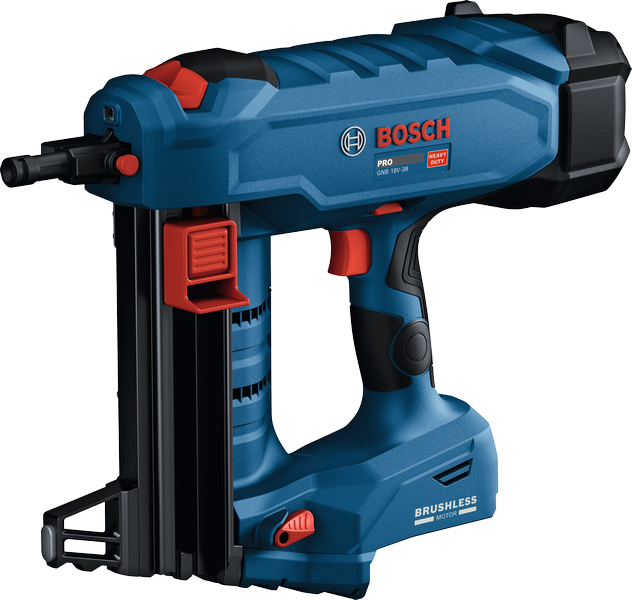

GNB 18V-38 Professional
Cordless Concrete Nailer
Easy and efficient fastening in concrete with powerful BITURBO Brushless technology
- Efficient direct fastening applications – all you need is one ProCORE18V battery
- BITURBO Brushless technology for fast, direct fixation of steel tracks on tough material like concrete and steel
- Reliable and optimised system with tool and certified nails for peace of mind at your jobsite
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 9L7 000
in stock
Included in all variants
-
1 x push out pinPart Number: 1 600 A03 42F
-
1 x utility hookPart Number: 1 600 A02 K07
Additional in this variant
-
Carton box w/carton insert
Your Selection
Part Number: 0 601 9L7 001
in stock
Included in all variants
-
1 x push out pinPart Number: 1 600 A03 42F
-
1 x utility hookPart Number: 1 600 A02 K07
Additional in this variant
-

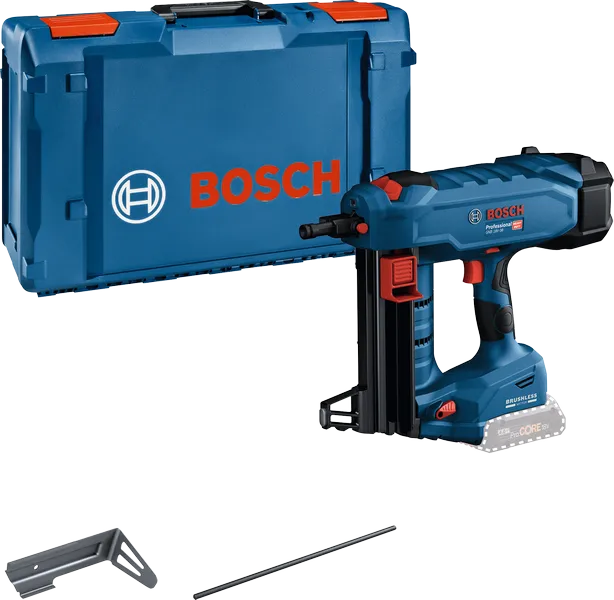

1 x XL-BOXX inlay for GNB 18V-38/40Part Number: 1 600 A02 R2X
Your Selection
Part Number: 0 601 9L7 071
in stock
Included in all variants
-
1 x push out pinPart Number: 1 600 A03 42F
-
1 x utility hookPart Number: 1 600 A02 K07

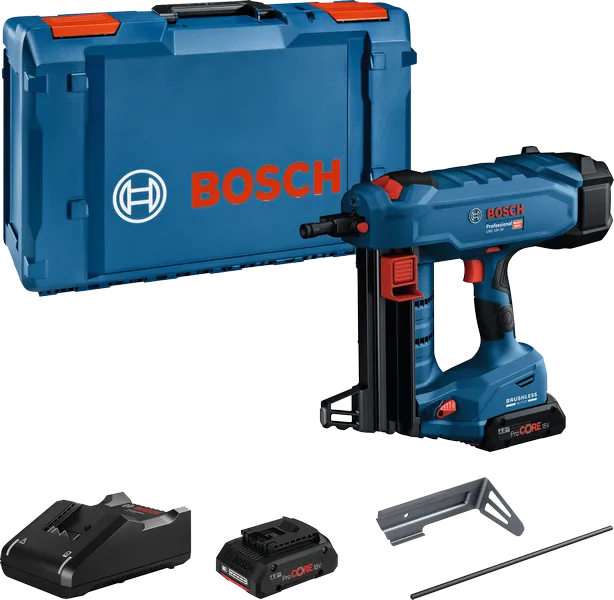

Additional in this variant
-
1 x XL-BOXX inlay for GNB 18V-38/40Part Number: 1 600 A02 R2X
-
Quick charger GAL 18V-40 ProfessionalPart Number: 1 600 A01 9RK
-
2 x battery ProCORE18V 4.0AhPart Number: 1 600 A01 6GB
Technical data
The most important data |
|
|---|---|
| Collation angle | 0 ° |
| Nail diameter | 2.7 – 3 mm |
| Nail length | 13 – 38 mm |
| Nail/Staple/Pin type | Pin |
| Weight excl. battery* | 4.1 kg |
| Battery voltage | 18.0 V |

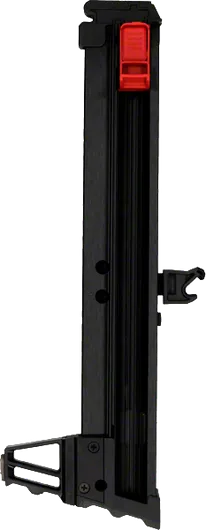

| Magazine capacity | 22 Pcs |

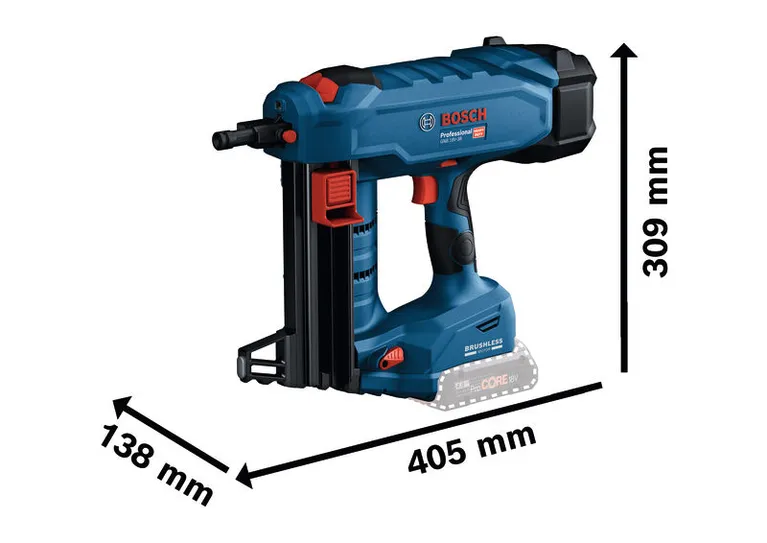

| Packaging dimensions (width x length x height) | 335 x 470 x 145 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GNB 18V-38 Professional: Further information
Product Highlights

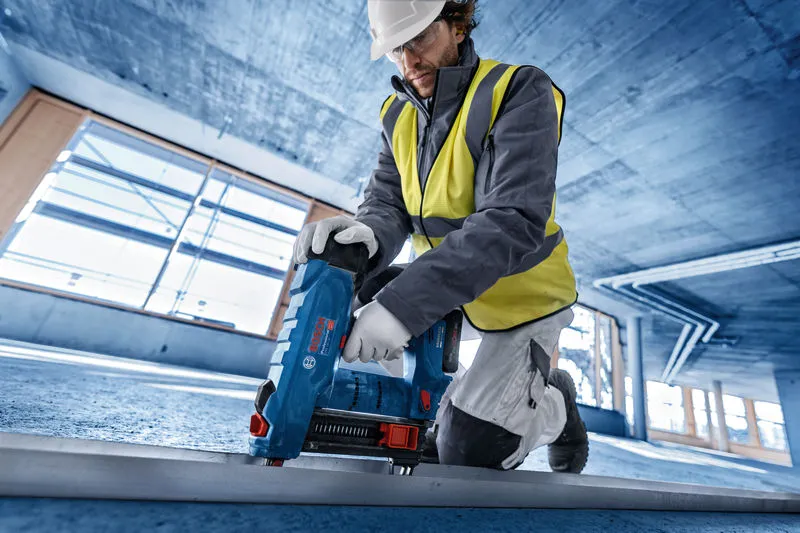

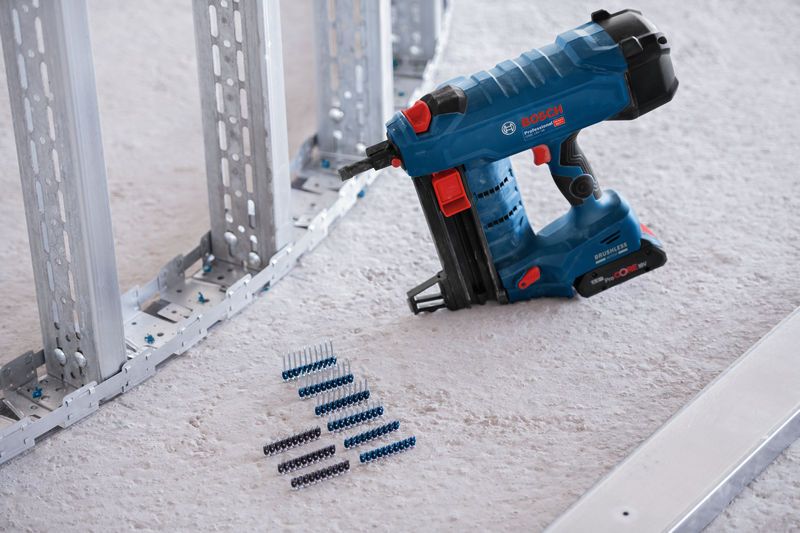

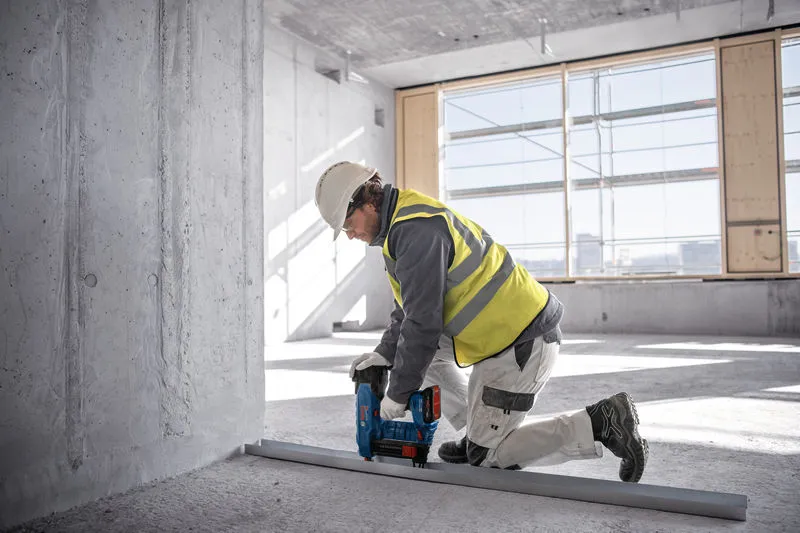

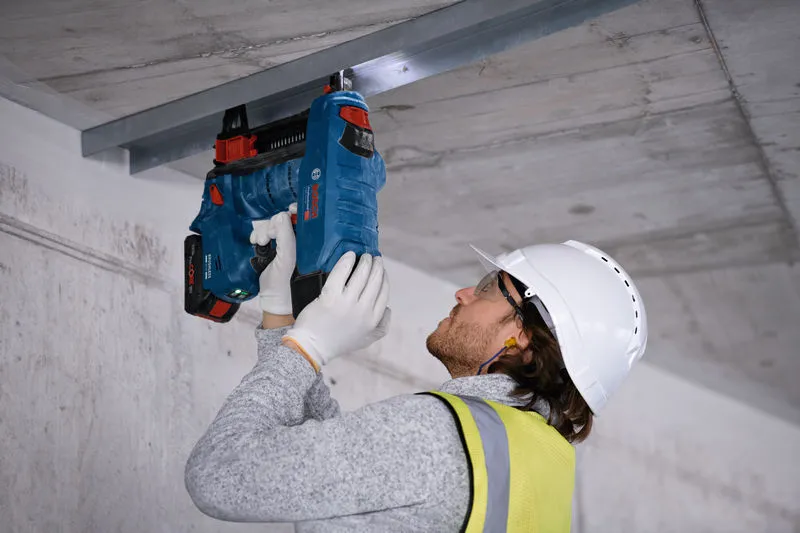

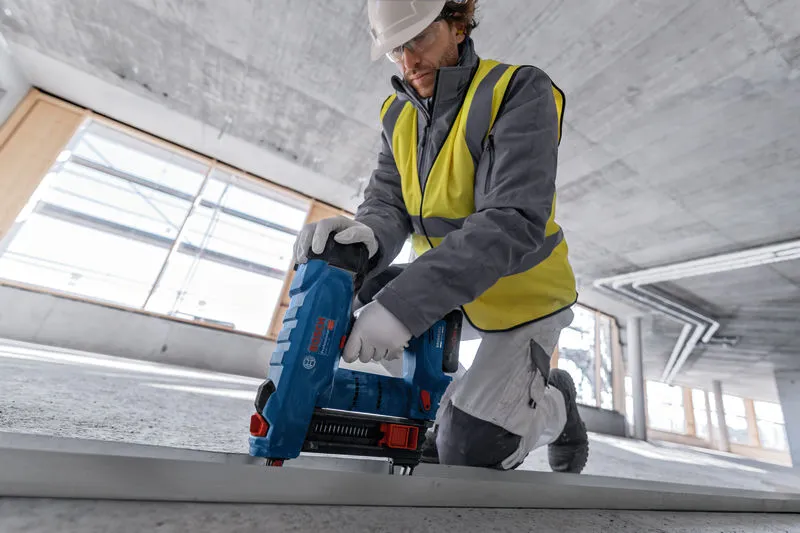

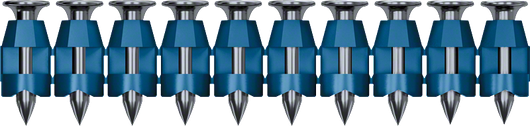

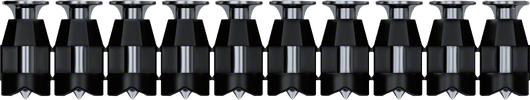

Fastening your steel tracks on tough materials like concrete and steel has to be easy, efficient, and intuitive. The GNB 18V-38 Professional helps you to get this job done. It is driven by our powerful BITURBO Brushless technology and is part of the Bosch Professional 18V System. All you need is one ProCORE18V battery and you are good to go – no additional gas cartridges necessary. We developed a reliable fastening system that includes both tool and nails. This allows you to fully focus on your job. The certified galvanised carbon steel nails ensure lasting durability in concrete and steel. We offer an array of nails ranging from 16 mm to 38 mm for concrete, and 13 mm to 19 mm for steel applications. Tool and nails have been tested and certified according to ETA or ICC.
Equipment & Application
Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
