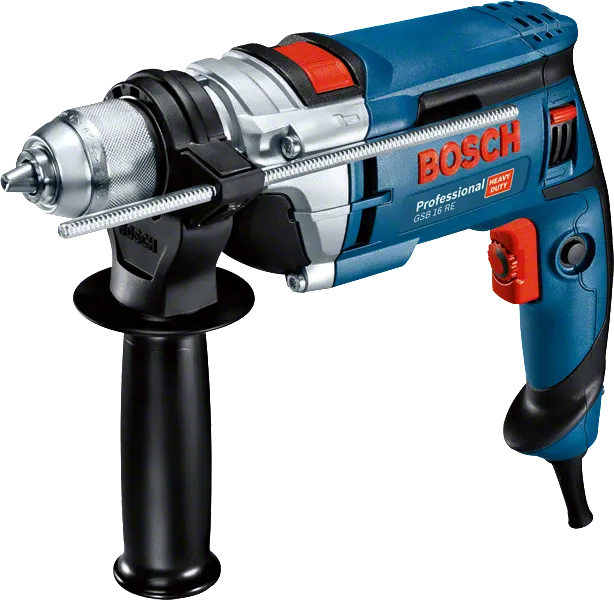

Impact Drill
GSB 16 RE Professional

£129.88 Including VAT.
in carrying case with auxiliary handle, Accessory

The fastest tool in its class

Choose product variation:

in stock

Print

More

Technical data

The most important data
Rated input power 750 W
No-load speed, 1st gear 0 – 2,800 rpm
Power output 380 W
Weight 2.2 kg
Rated torque 2.3 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm

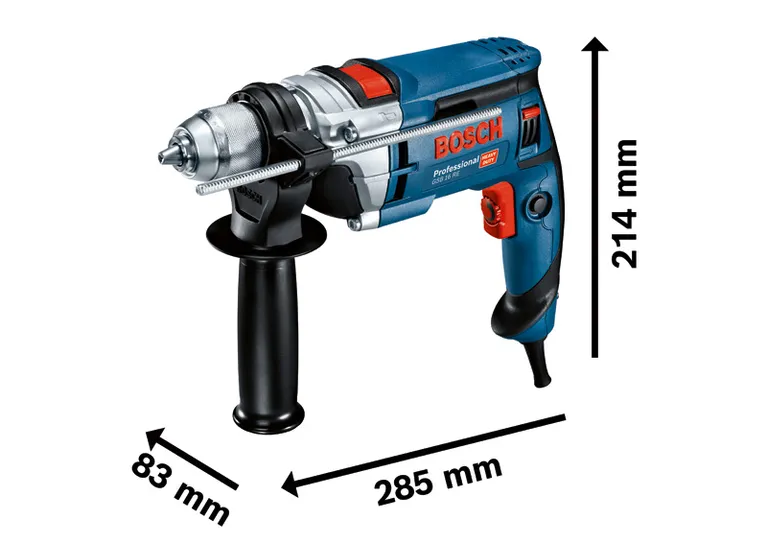

Tool dimensions (width) 83 mm
Tool dimensions (length) 285 mm
Tool dimensions (height) 214 mm
Impact rate at no-load speed 0 – 47,600 bpm
Packaging dimensions (width x length x height) 350 x 375 x 110 mm
Drill chuck, version Keyless chuck
Voltage, electrical 110 V
Spindle collar diameter 43 mm
Drilling range
Drilling diameter in concrete 16 mm
Drilling diameter in wood 30 mm
Drilling diameter in steel 13 mm
Drilling diameter in masonry 18 mm
Noise/vibration information

Total vibration values (vector sum of three directions)
Sound pressure level 96 dB(A)
Sound power level 107 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 5.5 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 15 m/s²
Uncertainty K 2.4 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The fastest tool in its class

  • 750 W for the fastest work progress
  • Compact design for perfect handling
  • Sturdy metal gear housing for long lifetime

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Convenient change of accessories Keyless chuck opens and closes easily
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
Scope of supply

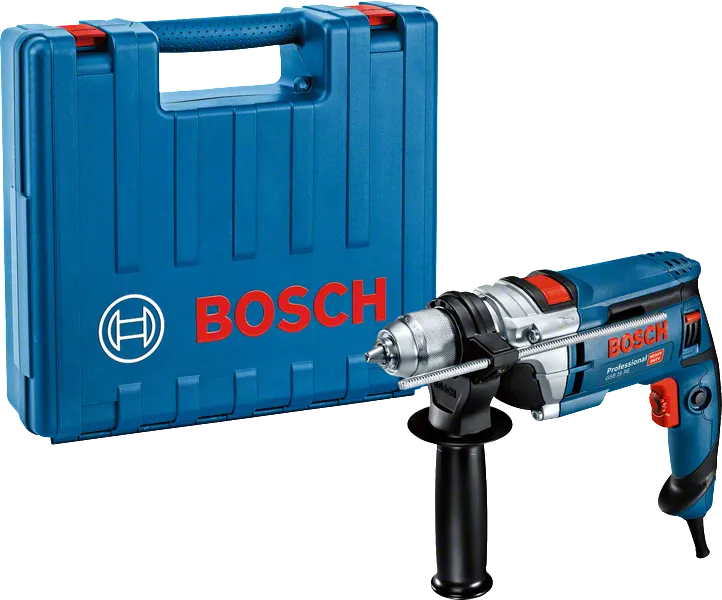

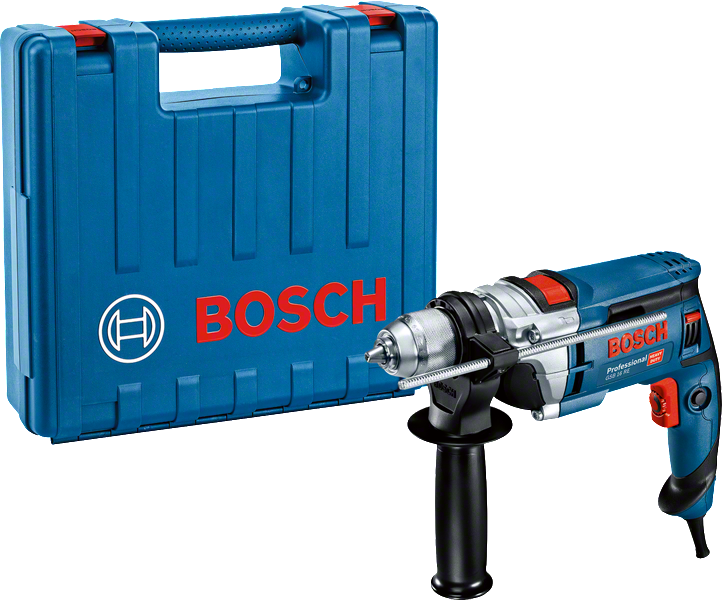

in carrying case with auxiliary handle, Accessory

Part Number: 060114E560

£129.88
Including VAT.

Selected version

Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 110 V

in stock

in carrying case with auxiliary handle, Accessory

Part Number: 060114E560920

£113.64
Including VAT.


Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 110 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 060114E570

£129.88
Including VAT.


Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 240 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 060114E570930

£75.82
Including VAT.


Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 240 V

Available at Bosch partners

Product details

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.
Select a spare part
Order online
Pay
Receive your item
Find a spare part
Find the right spare part
Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
Part number
3601A4E560
Product name
GSB 16 RE
Description
Impact Drill
Yes, the part number matches.
I'm looking for a spare part for this product.
Go to spare part
No, the part number does not match.
I'm looking for a spare part for a different product.
Browse spare parts catalogue
Accessories

HSS Twist Drill Bit Ground

1/64" x 5 x 20 mm

Drilling with the Maximum Precision
£42.76

HSS Twist Drill Bit Ground

1/32" x 10 x 30 mm

Drilling with the Maximum Precision
£25.98

HSS Twist Drill Bit Ground

3/64" x 16 x 38 mm

Drilling with the Maximum Precision
£23.42

HSS Twist Drill Bit Ground

1/16" x 20 x 43 mm

Drilling with the Maximum Precision
£16.31

HSS Twist Drill Bit Ground

5/64" x 24 x 49 mm

Drilling with the Maximum Precision
£18.06

HSS Twist Drill Bit Ground

3/32" x 30 x 57 mm

Drilling with the Maximum Precision
£14.58

HSS Twist Drill Bit Ground

7/64" x 33 x 61 mm

Drilling with the Maximum Precision
£18.06

HSS Twist Drill Bit Ground

1/8" x 36 x 65 mm

Drilling with the Maximum Precision
£15.36

HSS Twist Drill Bit Ground

9/64" x 39 x 70 mm

Drilling with the Maximum Precision
£20.27

HSS Twist Drill Bit Ground

5/32" x 43 x 75 mm

Drilling with the Maximum Precision
£18.54

HSS Twist Drill Bit Ground

11/64" x 47 x 80 mm

Drilling with the Maximum Precision
£24.48

HSS Twist Drill Bit Ground

3/16" x 52 x 86 mm

Drilling with the Maximum Precision
£22.50

HSS Twist Drill Bit Ground

13/64" x 52 x 86 mm

Drilling with the Maximum Precision
£30.16

HSS Twist Drill Bit Ground

7/32" x 57 x 93 mm

Drilling with the Maximum Precision
£27.96

HSS Twist Drill Bit Ground

15/64" x 57 x 93 mm

Drilling with the Maximum Precision
£37.31

HSS Twist Drill Bit Ground

1/4" x 63 x 101 mm

Drilling with the Maximum Precision
£34.58

HSS Twist Drill Bit Ground

17/64" x 69 x 109 mm

Drilling with the Maximum Precision
£46.21

HSS Twist Drill Bit Ground

9/32" x 69 x 109 mm

Drilling with the Maximum Precision
£42.74

HSS Twist Drill Bit Ground

19/64" x 75 x 117 mm

Drilling with the Maximum Precision
£28.13

HSS Twist Drill Bit Ground

5/16" x 75 x 117 mm

Drilling with the Maximum Precision
£26.09

HSS Twist Drill Bit Ground

21/64" x 75 x 117 mm

Drilling with the Maximum Precision
£34.49

HSS Twist Drill Bit Ground

11/32" x 81 x 125 mm

Drilling with the Maximum Precision
£31.63

HSS Twist Drill Bit Ground

23/64" x 81 x 125 mm

Drilling with the Maximum Precision
£41.65

HSS Twist Drill Bit Ground

3/8" x 87 x 133 mm

Drilling with the Maximum Precision
£38.08

HSS Twist Drill Bit Ground

25/64" x 87 x 133 mm

Drilling with the Maximum Precision
£49.85

HSS Twist Drill Bit Ground

13/32" x 87 x 133 mm

Drilling with the Maximum Precision
£45.49

HSS Twist Drill Bit Ground

27/46" x 94 x 142 mm

Drilling with the Maximum Precision
£59.45

HSS Twist Drill Bit Ground

7/16" x 94 x 142 mm

Drilling with the Maximum Precision
£53.64

HSS Twist Drill Bit Ground

29/64" x 94 x 142 mm

Drilling with the Maximum Precision
£70.46

HSS Twist Drill Bit Ground

15/32" x 101 x 151 mm

Drilling with the Maximum Precision
£63.65

HSS Twist Drill Bit Ground

31/64" x 101 x 151 mm

Drilling with the Maximum Precision
£82.20

HSS Twist Drill Bit Ground

1/2" x 101 x 151 mm

Drilling with the Maximum Precision
£74.16

HSS Twist Drill Bit Ground

9/16" x 114 x 169 mm

Drilling with the Maximum Precision
£111.58

HSS Twist Drill Bit Ground

5/8" x 120 x 178 mm

Drilling with the Maximum Precision
£129.86

Keyless Chuck

1.5 – 13 mm, 1/2" - 20

Up to 13-mm Diameters
£49.92

Hex Shank for Core Cutters

11 mm, 80 mm

For Core Cutters
£27.48

Hex Shank for Core Cutters

11 mm, 220 mm

For Core Cutters
£48.34

Wire Wheel, Crimped Wire

30 mm, 0,2 mm, 6 mm

Fine Finish on Steel
£4.39

Wire Wheel, Crimped Wire

50 mm, 0,2 mm, 15 mm

Fine Finish on Steel
£5.00

Wire Wheel, Crimped Wire

50 mm, 0,3 mm, 8 mm

Fine Finish on Steel
£3.76

Wire Wheel, Knotted Wire

75 mm, 0,5 mm, 13 mm

Coarse Finish on Steel
£10.01

Pencil Brush, Crimped Wire

15 mm, 0,2 mm

Fine Finish on Steel
£4.06

Pencil Brush, Knotted Wire

10 mm, 0,35 mm

Coarse Finish on Steel
£11.89

Pencil Brush, Knotted Wire

19 mm, 0,35 mm

Coarse Finish on Steel
£13.52

Wire Cup Brush, Crimped Wire

50 mm, 0,3 mm

Fine Finish on Stainless Steel
£10.04

Wire Cup Brush, Crimped Wire

60 mm, 0,3 mm

Fine Finish on Steel
£11.74

Wire Wheel, Crimped Wire

30 mm, 0,3 mm, 6 mm

Fine Finish on Stainless Steel
£6.13

Wire Wheel, Crimped Wire

50 mm, 0,2 mm, 15 mm

Fine Finish on Steel
£7.51

Wire Wheel, Crimped Wire

70 mm, 0,3 mm, 10 mm

Fine Finish on Steel
£9.38

Wire Wheel, Crimped Wire

70 mm, 0,3 mm, 15 mm

Fine Finish on Steel
£8.33

Wire Wheel, Crimped Wire

80 mm, 0,2 mm, 4 mm

Fine Finish on Steel
£6.92

Wire Wheel, Crimped Wire

100 mm, 0,3 mm, 10 mm

Fine Finish on Steel
£12.16

Wire Wheel, Knotted Wire

70 mm, 0,35 mm, 14 mm

Coarse Finish on Stainless Steel
£17.51

Pencil Brush, Crimped Wire

15 mm, 0,2 mm

Fine Finish on Stainless Steel
£7.09

Pencil Brush, Crimped Wire

25 mm, 0,3 mm

Fine Finish on Stainless Steel
£9.46

Pencil Brush, Knotted Wire

10 mm, 0,35 mm

Coarse Finish on Stainless Steel
£17.86

Pencil Brush, Knotted Wire

19 mm, 0,35 mm

Coarse Finish on Stainless Steel
£20.29

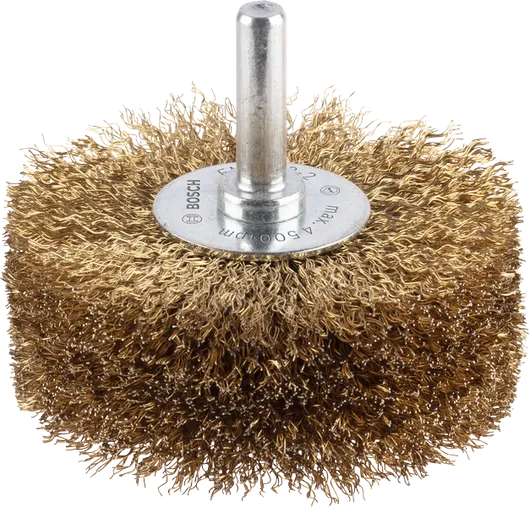

Wire Wheel, Crimped Wire, Brass-Coated
