Impact Drill
GSB 16 RE Professional

£129.88 Including VAT.
in carrying case with auxiliary handle, Accessory

The fastest tool in its class

Choose product variation:

in stock

Print

More

Technical data

The most important data

Rated input power 750 W
No-load speed, 1st gear 0 – 2,800 rpm
Power output 380 W
Weight 2.2 kg
Rated torque 2.3 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm

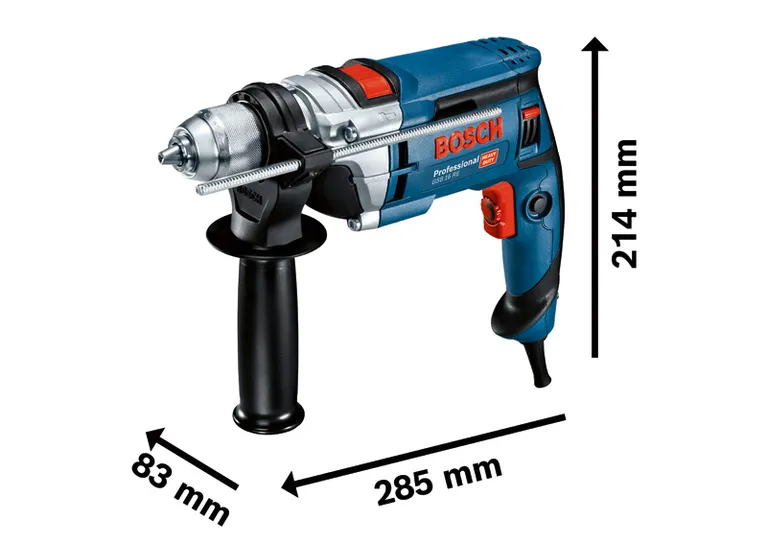

Tool dimensions (width) 83 mm
Tool dimensions (length) 285 mm
Tool dimensions (height) 214 mm
Impact rate at no-load speed 0 – 47,600 bpm
Packaging dimensions (width x length x height) 360 x 380 x 120 mm
Drill chuck, version Keyless chuck
Voltage, electrical 240 V
Spindle collar diameter 43 mm
Drilling range
Drilling diameter in concrete 16 mm
Drilling diameter in wood 30 mm
Drilling diameter in steel 13 mm
Drilling diameter in masonry 18 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 96 dB(A)
Sound power level 107 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 5.5 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 15 m/s²
Uncertainty K 2.4 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The fastest tool in its class

  • 750 W for the fastest work progress
  • Compact design for perfect handling
  • Sturdy metal gear housing for long lifetime

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Forward / reverse rotation for inserting and removing screws
Convenient change of accessories Keyless chuck opens and closes easily
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
Scope of supply
in carrying case with auxiliary handle, Accessory

Part Number: 060114E560

£129.88
Including VAT.

Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 110 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 060114E560920

£113.64
Including VAT.

Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 110 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 060114E570

£129.88
Including VAT.

Selected version

Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 240 V

in stock

in carrying case with auxiliary handle, Accessory

Part Number: 060114E570930

£75.82
Including VAT.

Price includes:

  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 240 V

Available at Bosch partners

Product details
