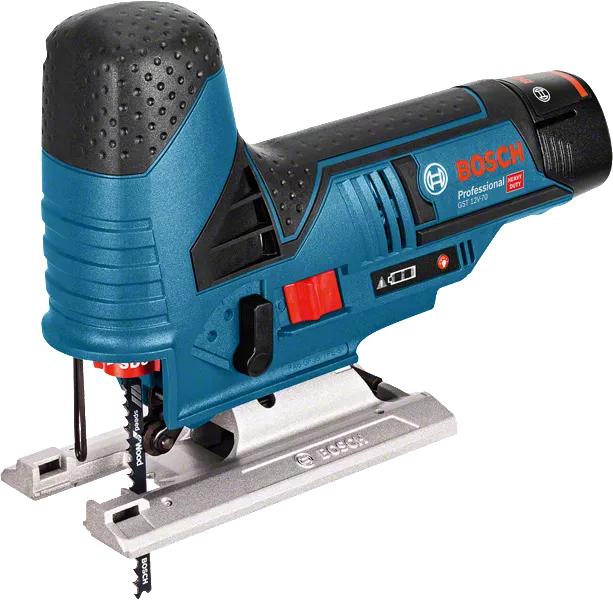

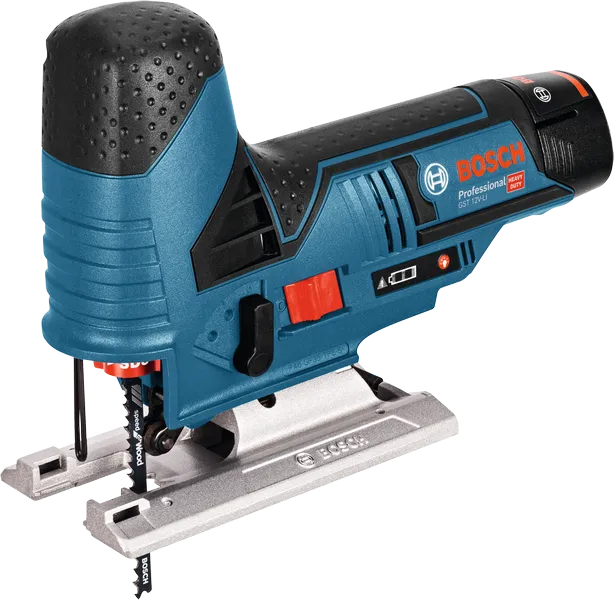

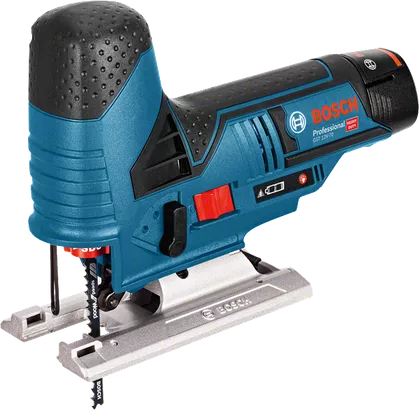

GST 12V-70 Professional
Cordless Jigsaw
Compact barrel grip jigsaw in the 12 V category
- Barrel grip, compactness, and lightweight design enable best manoeuvrability, even in cuts made from underneath
- Grip is extremely close to cutting line, delivering perfect handling during use
- Tool-free Bosch SDS-system makes changing saw blades easy
Functions & key features
Your Selection
- in cardboard box with dust extraction accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 5A1 001
Including VAT
in stock

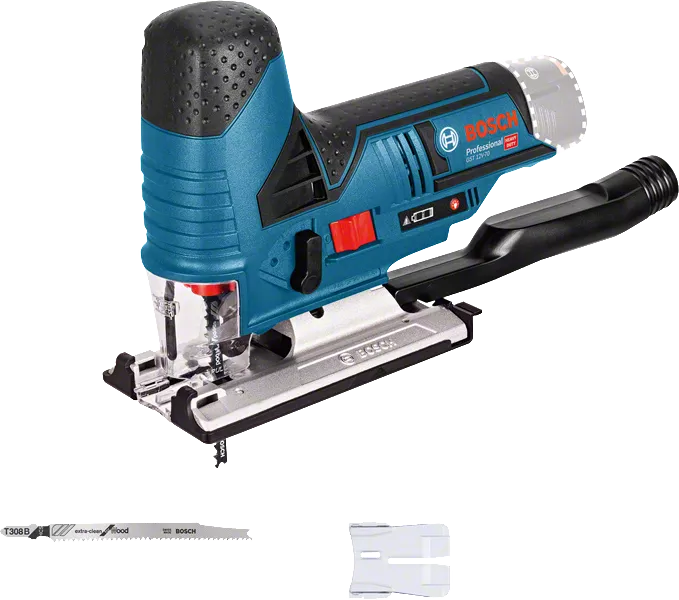

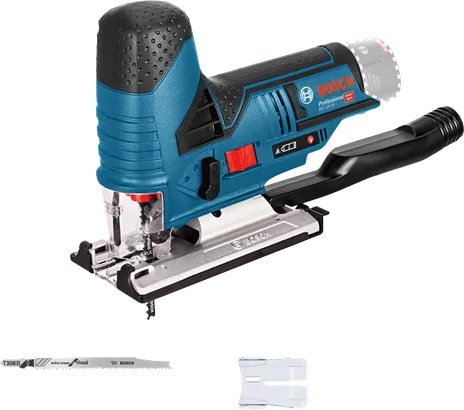

Included in all variants
-
1 x jigsaw blade T 308 B, Extra-clean for Wood (available separately as set of 3: 2 608 663 750)
-
Dust extraction set
-
1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
-
Glide shoe
-

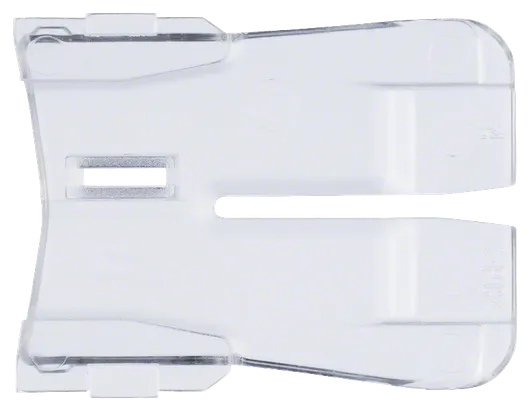

Anti-splinter guard
Additional in this variant
-
Cardboard box
Your Selection
Part Number: 0 601 5A1 070
Including VAT
in stock
Included in all variants
-
1 x jigsaw blade T 308 B, Extra-clean for Wood (available separately as set of 3: 2 608 663 750)
-
Dust extraction set
-
1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
-
Glide shoe
-
Anti-splinter guard
Additional in this variant
-
L-BOXX 102Part Number: 1 600 A01 2FZ
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
2 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
-
L-BOXX inlay
Product comparison
| Classification |
| Cutting Depth |
| Power |
| Allround vs. Precision |
| GST 12V-70 Professional |
|---|
|
| entry-level sawing Applications |
| 70 mm |
| 12V |
| GST 18V-LI S/B Professional |
|---|
|
| all-round sawing Applications |
| 120 mm |
| 18V |
| GST 90 E/BE Professional |
|---|
|
| entry-level sawing Applications |
| 90 mm |
| 650W |
| GST 150 CE/BCE Professional |
|---|
|
| all-round sawing Applications |
| 150 mm |
| 780W |
| GST 160 CE/BCE Professional |
|---|
|
| high-demand sawing aplications |
| 160 mm |
| 800W |
Technical data
The most important data |
|
|---|---|
| Stroke rate at no load* | 1,500 – 2,800 spm |
| Stroke height | 18 mm |
| Weight excl. battery* | 1.5 kg |
| Battery voltage | 12.0 V |
| Bevel angle | 0 – 45 ° |

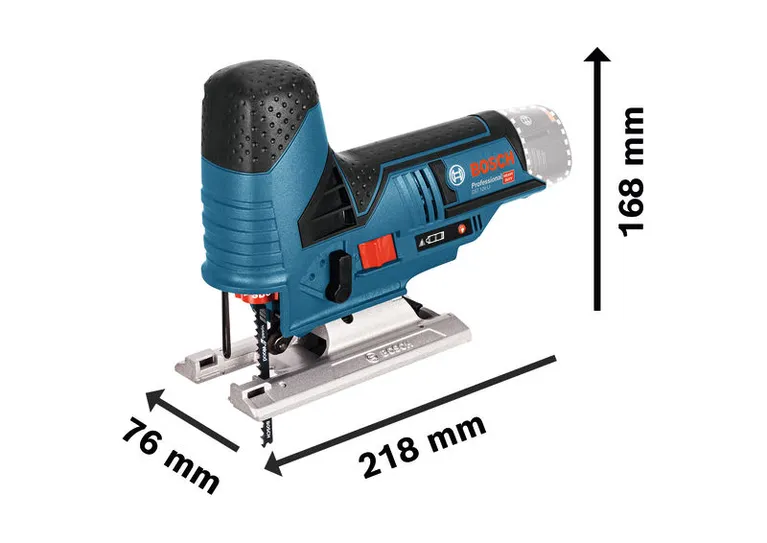

| Packaging dimensions (width x length x height) | 225 x 335 x 105 mm |
| Weight incl. battery* | 1.5 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 77 dB(A); Sound power level 88 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GST 12V-70 Professional: Further information
Product Highlights
The GST 12V-70 Professional cordless jigsaw is the compact choice in the 12 V category. Its barrel grip as well as a compact and lightweight design enable best manoeuvrability, even when cutting from underneath. The jigsaw’s grip is extremely close to its cutting line, delivering perfect handling during use. Furthermore, its tool-free Bosch SDS-system makes changing saw blades easy.
Equipment & Application

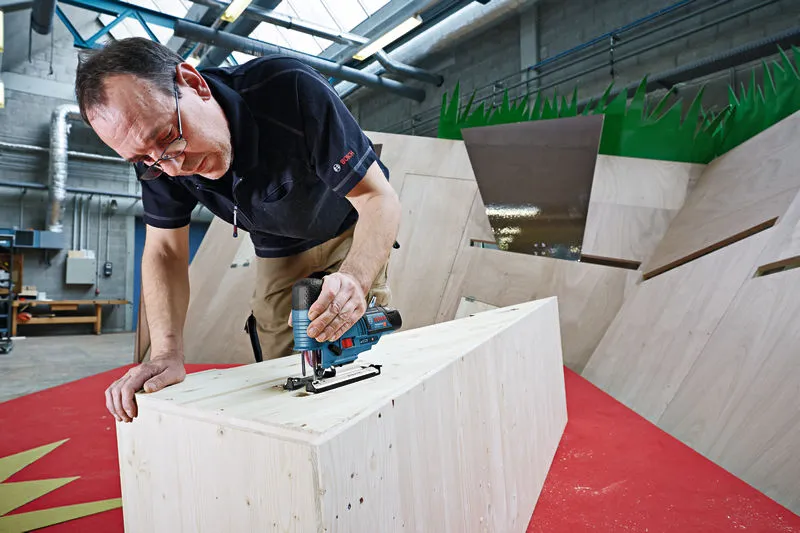

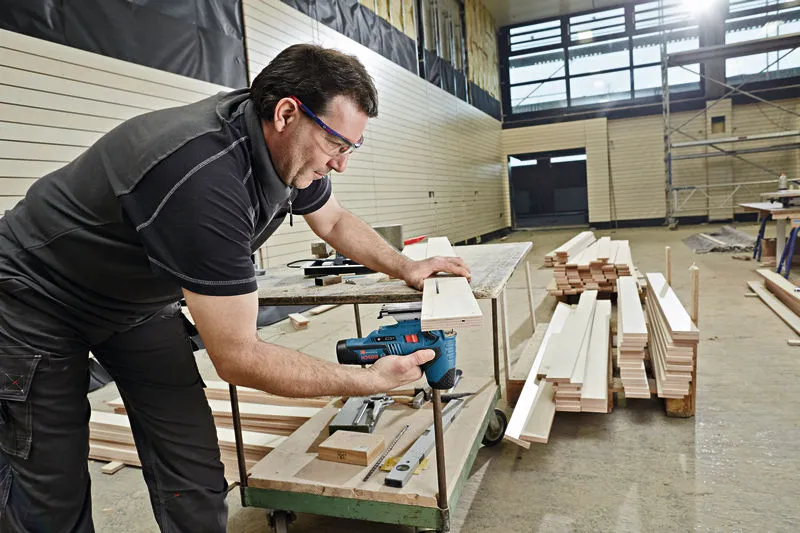

This tool is intended for curved and cross cuts as well as for medium to light applications in solid wood, chipboard, and wood composites. It is compatible with the Bosch Click & Clean dust extraction system and other Bosch vacuum cleaners, as well as with all Bosch Professional 12 V batteries and chargers (Professional 12V System).
Additional Information
The GST 12V-70 Professional also makes bevelled cuts and features constant speed, an LED light, orbital action, precision control, and speed selection.
