Detector

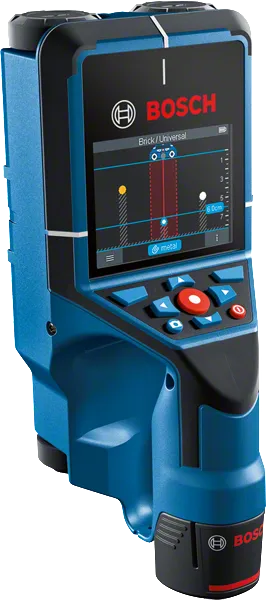

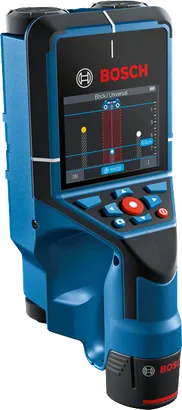

Wallscanner D-tect 200 C Professional

  • New
with 4 x battery (AA), accessory set

The wallscanner for exceptional results: top performance and easy documentation

Choose product variation:

Print

Technical data

The most important data

Bosch Radar Technology yes
Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures
Max. detection depth 200 mm
Detection depth, dry concrete, max. 200 mm
Detection depth, early age concrete, max. 60 mm
Detection depth, other wall types, max. 80 mm
Detection depth, wooden substructures, max. 38 mm
Accuracy ± 5 mm* (*plus use-dependent deviation)
Views Object view, Spot view, Signal View 2D, Signal View
Wall types Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick
Dust and splash protection IP 5X
Documentation via USB-C, SD-Card
Updatable yes
Material identification Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
Weight, approx. 0.7 kg
Additional function Leakage detection, distance measurement

Advantages

The wallscanner for exceptional results: top performance and easy documentation

  • Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
  • Multiple views flexibly offer best results in various situations

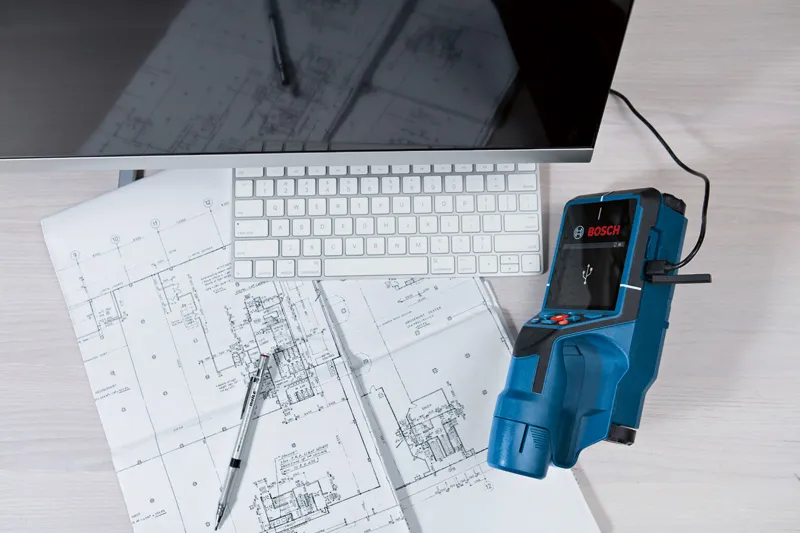

  • Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Scope of supply

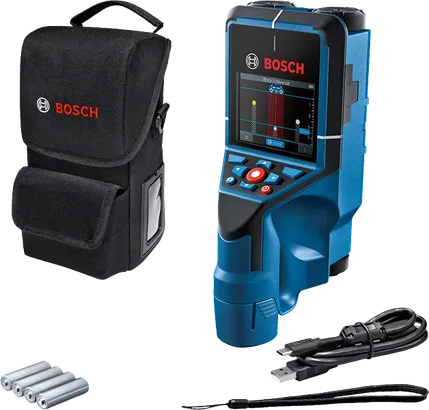

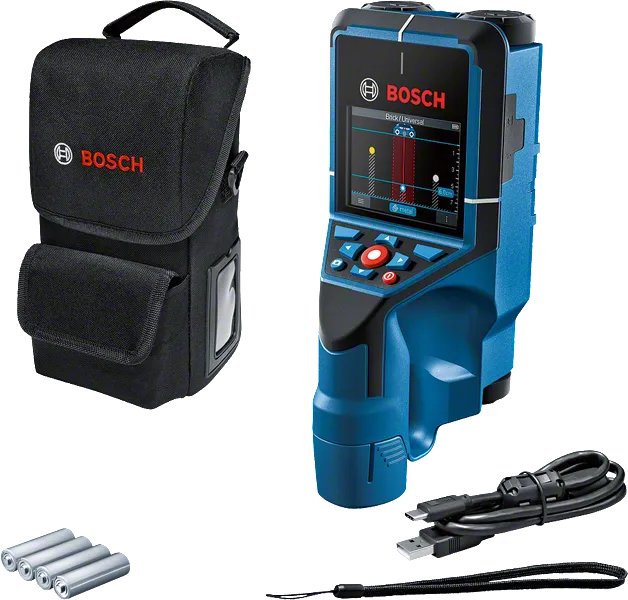

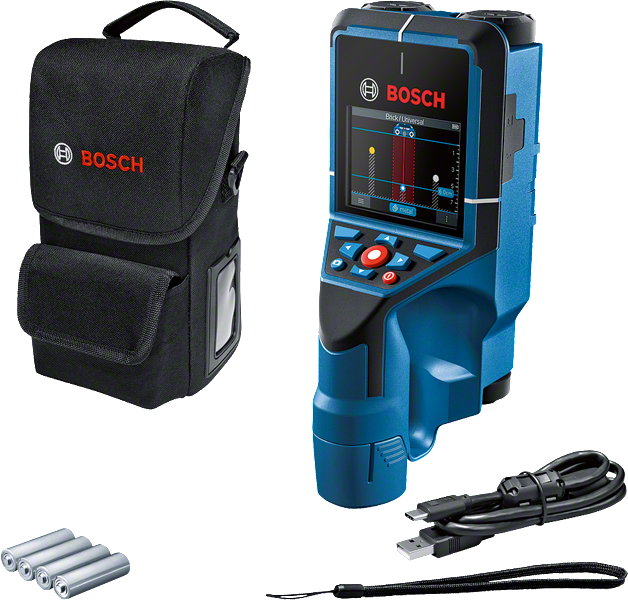

with 4 x battery (AA), accessory set

Part Number: 0601081600

Selected version

Price includes:

  • Pouch
  • 4 x 1.5 V LR6 battery (AA)
  • Battery adapter (1600A017HF/1600A017HH)
  • USB-C™ Cable
  • Hand strap

Available at Bosch partners

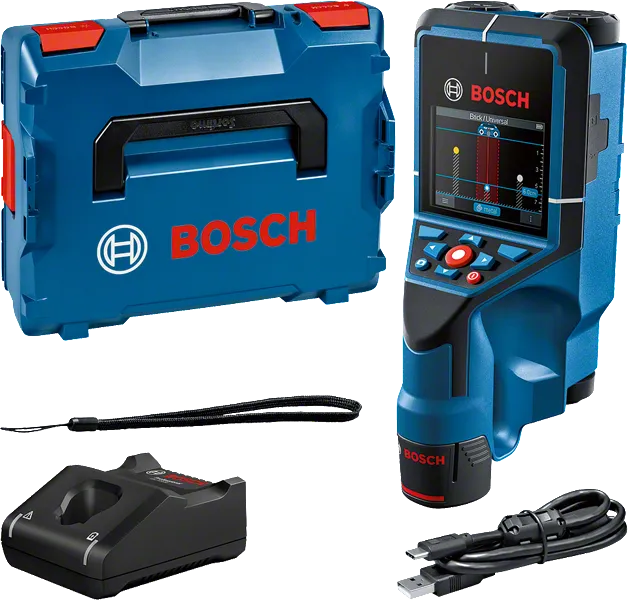

with Accessory, Hand strap

Part Number: 0601081601

Price includes:

  • L-BOXX 136 1 600 A01 2G0
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R3
  • USB-C™ Cable
  • Hand strap

Available at Bosch partners

Product details

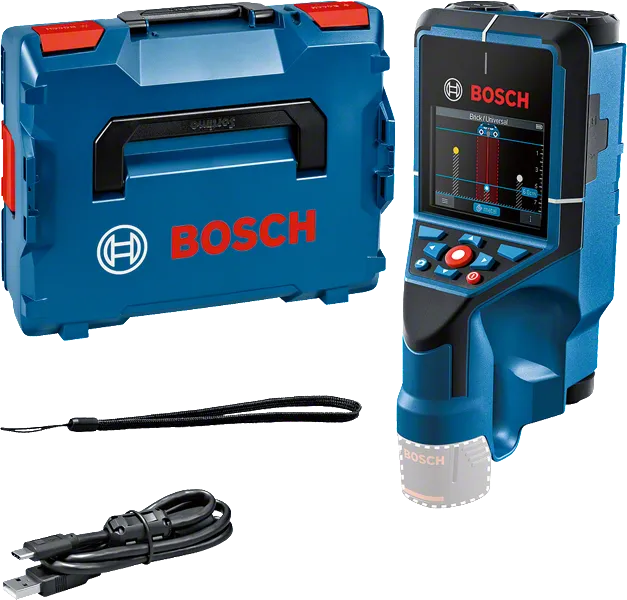

with Hand strap

Part Number: 0601081608

Price includes:

  • L-BOXX 136 1 600 A01 2G0
  • USB-C™ Cable
  • Hand strap

Available at Bosch partners
