Measuring technology
![GCL 2-50 C]( "GCL 2-50 C")
![GCL 2-50 C]( "GCL 2-50 C")
![GCL 2-50 C]( "GCL 2-50 C")
![GCL 2-50 C]( "GCL 2-50 C")

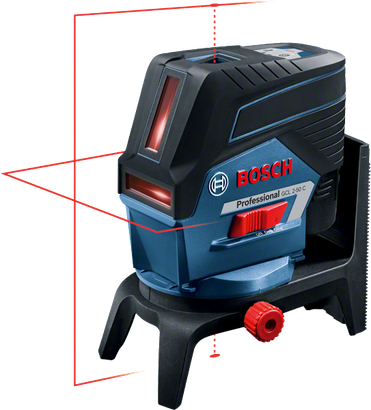

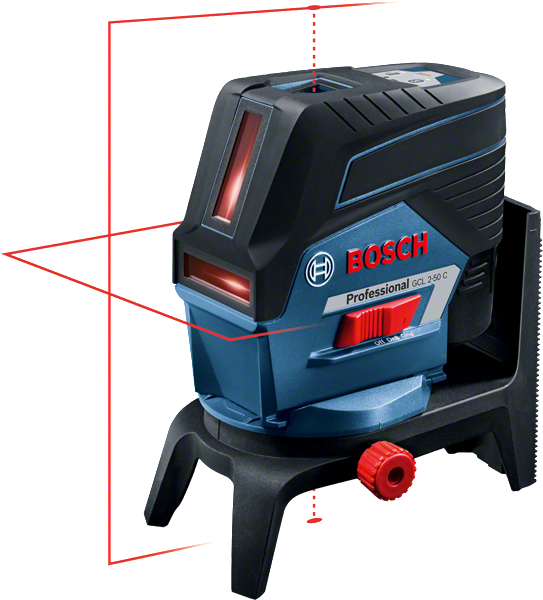

GCL 2-50 C Professional
Combi Laser
Smart functions for maximum productivity

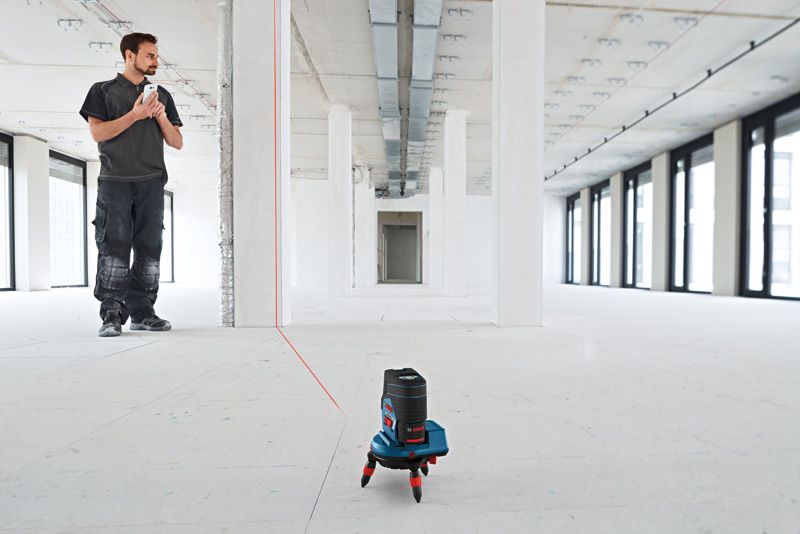

- Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
- Dual Power Source allows for a 12 V-Li-ion battery or standard alkaline batteries for increased flexibility

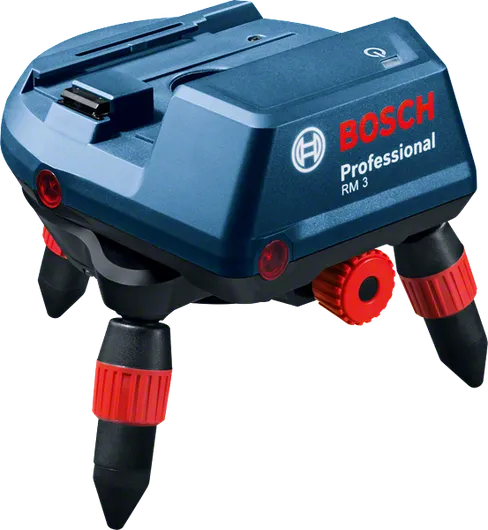

- Precise alignment of laser lines around centred plumb points with the manual RM 2 or motorised RM 3
Functions & key features
Your Selection
- with 4 x battery (AA), adapter
£248.00
Including VAT
available at Bosch Partner
Available from our partners
with 4 x battery (AA), adapter
0 601 066 G00
GCL 2-50 C Professional
Your Selection
with 4 x battery (AA), adapter
Part Number: 0 601 066 G00
£248.00
Including VAT
available at Bosch Partner

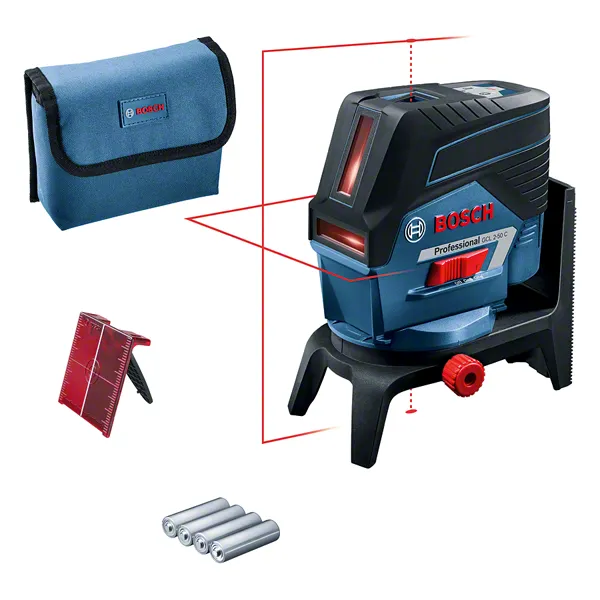

Available from our partnersIncluded in this variant
-
AA1 alkaline battery adapterPart Number: 1 608 M00 C1B
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
-
Rotating mount RM 2 ProfessionalPart Number: 0 601 092 700
-
Laser target plate
Technical data
The most important data
Battery voltage
12.0 V
Laser diode
635 – 650 nm
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range*
20 m
Working range with receiver*
50 m
Accuracy*
± 0.3 mm/m
Working range of laser points, max.*
10 m (top), 10 m (bottom)
Self-levelling range
± 4°
Dust and splash protection
IP54 (except for the battery or battery adapter)
Power supply
12 V Li-ion or 4 x 1.5 V LR6 (AA)
Operating time (max.)
18 h (Li-Ion) and 10 h (4 x AA) in cross-line and point operation, 25 h (Li-Ion) and 16 h (4 x AA) in cross-line operation, 35 h (Li-Ion) and 28 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation

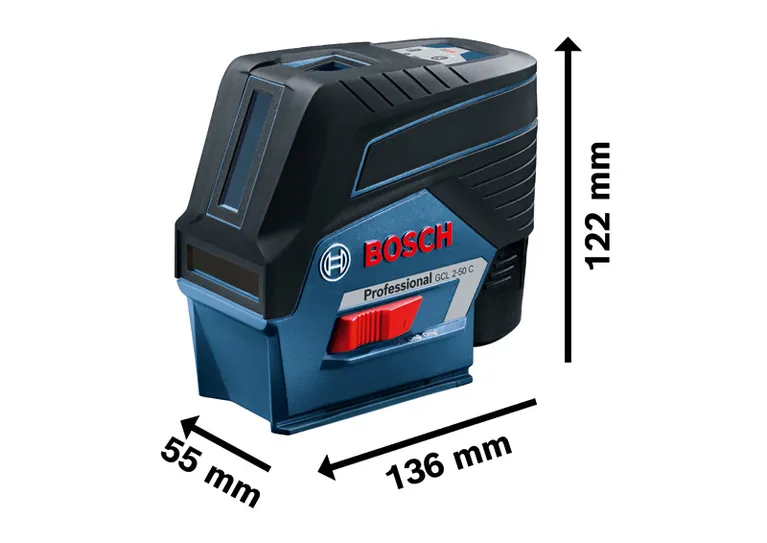

Weight, approx.*
0.6 kg
Colour of laser line
red
Color of plumb points
red
Projection
2 lines / 2 points
Plumb point accuracy*
± 0.7 mm/m
Compatible laser receivers
LR 6 + 7
* You can find more information about the deviations in the following link:
GCL 2-50 C Professional: Further information
Product Highlights
The combi laser GCL 2-50 C Professional offers many smart functions for maximum efficiency. A Bluetooth®-connection provides remote-control adjustments via a smartphone app, while Dual Power Source allows 12 V Li-ion or standard alkaline batteries for added flexibility. For precise positioning around the centred plumb points, the optional RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.
Equipment & Application

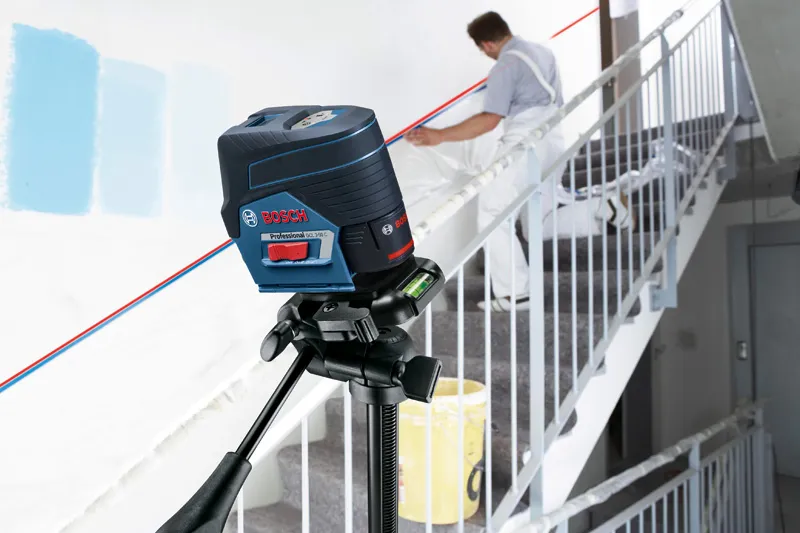

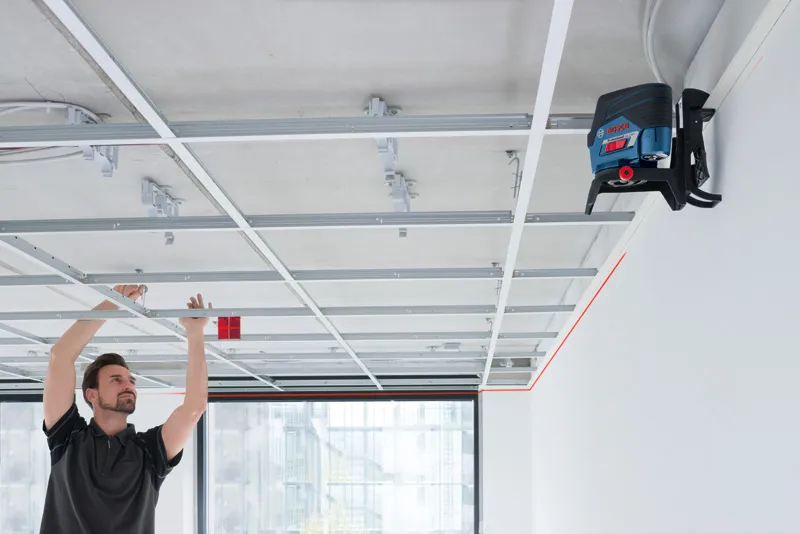

It is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing.
Additional Information

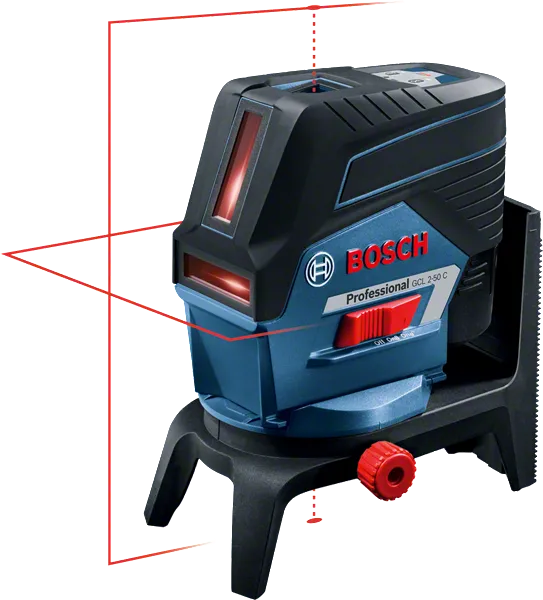

The GCL 2-50 C Professional's horizontal and vertical laser lines and two centred plumb points offer optimal visibility of up to 20 m without a receiver and 50 m with a receiver.
