Precise bow handle jigsaw for high-end applications
- Optimal tool control due to bow handle with narrow grip and variable speed trigger and compact, lightweight design
- Patented double roller saw blade guidance reduces bending for excellent precision
- Reliable 800 W motor and constant speed deliver cuts in even the hardest materials
Functions & key features
Your Selection
- in L-BOXX 136 with anti-splinter guard, Accessory
in stock

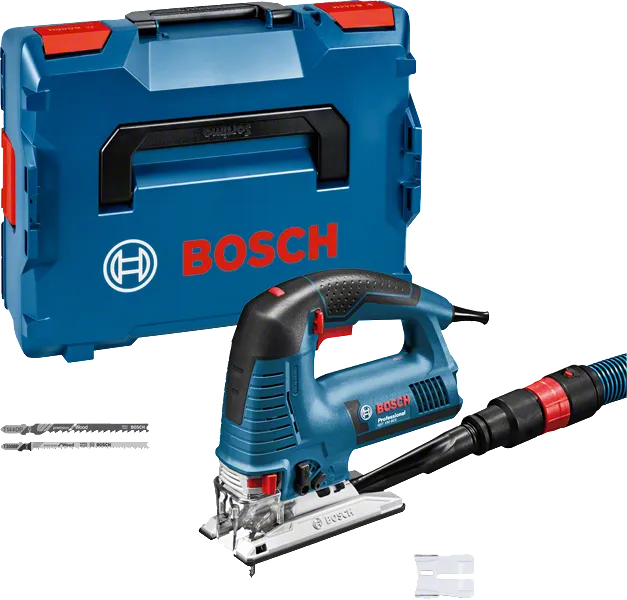

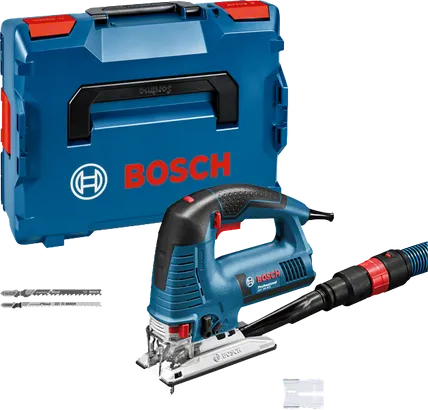

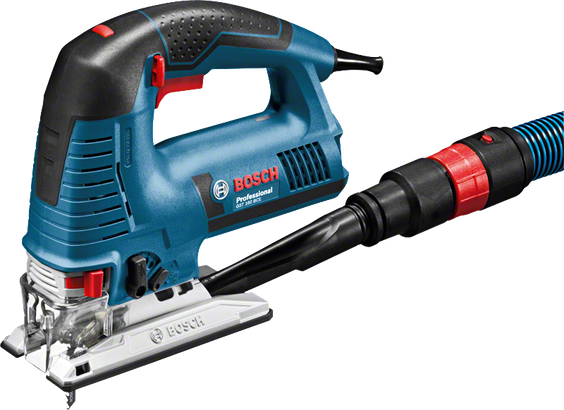

GST 160 BCE Professional
Your Selection
Part Number: 0 601 518 070
in stock

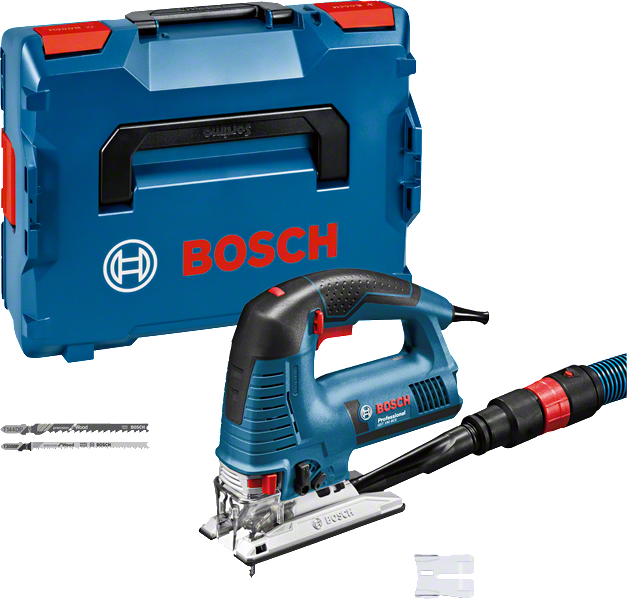

Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Voltage 240 V
-
1 x jigsaw blade T 244 D, Speed for Wood (available separately as set of 3: 2 608 630 879)
-
Anti-splinter guardPart Number: 2 601 016 096
-
Dust extraction adapter
-
1/1 L-BOXX inlay for toolPart Number: 1 600 A00 2UN
-
1 x jigsaw blade T 308 BP, Precision for Wood (available separately as set of 3: 2 608 667 399)
-
1 x jigsaw blade T 144 DP, Precision for Wood (available separately as set of 3: 2 608 633 A31)
Product comparison
| Classification |
| Cutting Depth |
| Power |
| Allround vs. Precision |
| GST 160 CE/BCE Professional |
|---|
|
| high-demand sawing aplications |
| 160 mm |
| 800W |
| GST 150 CE/BCE Professional |
|---|
|
| all-round sawing Applications |
| 150 mm |
| 780W |
| GST 18V-LI S/B Professional |
|---|
|
| all-round sawing Applications |
| 120 mm |
| 18V |
| GST 90 E/BE Professional |
|---|
|
| entry-level sawing Applications |
| 90 mm |
| 650W |
| GST 12V-70 Professional |
|---|
|
| entry-level sawing Applications |
| 70 mm |
| 12V |
Technical data
The most important data |
|
|---|---|
| Rated input power | 800 W |
| Stroke rate at no load* | 800 – 3,000 spm |
| Weight* | 2.3 kg |
| Saw, stroke length | 26 mm |
| Packaging dimensions (width x length x height) | 359 x 447 x 156 mm |
| Voltage, electrical | 240 V |
| No-load speed* | 3,000 rpm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GST 160 BCE Professional: Further information
Product Highlights
The GST 160 BCE Professional corded jigsaw offers precision for high-end applications. Optimal tool control is ensured by its bow handle with narrow grip and variable speed trigger as well as by its compact, lightweight design. The jigsaw’s patented double roller saw blade guidance reduces bending, delivering excellent cutting precision. Its reliable 800 W motor and constant speed deliver cuts in even the hardest materials.
Equipment & Application

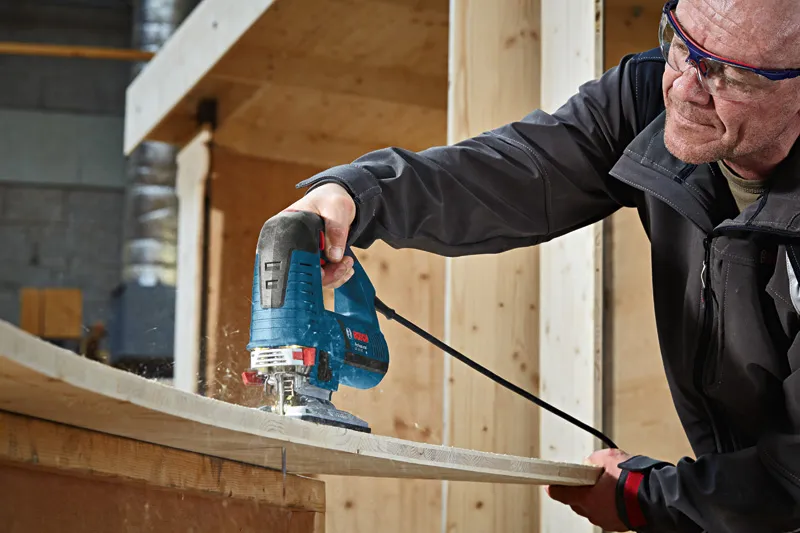

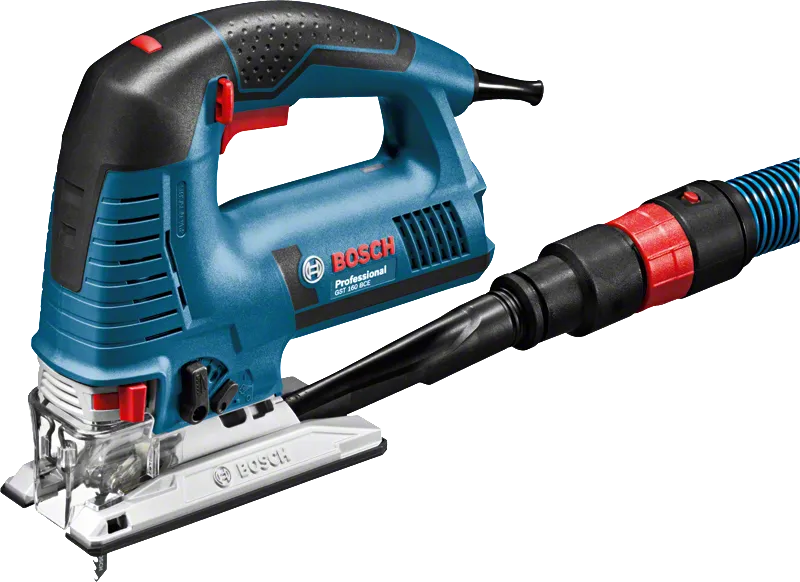

This tool is intended for curved cutting in solid wood, chipboard, and wood composites. It is compatible with the Bosch Click & Clean dust extraction system and other Bosch vacuum cleaners as well as with guide rails via an adapter.
Additional Information
The GST 160 BCE Professional also makes bevelled cuts and features a blower, an LED light, orbital action, precision control, speed selection, and tool-free SDS saw blade changes.
